Merchant hosted checkout

Merchants who have online websites (such as online shopping centers/ticketing websites/recharge websites, etc.) can refer to the solutions provided in this section to access PayCloud PayCloud payment.

Product introduction

The merchant hosted checkout is used to process credit/debit card payments on your website using PayCloud, collect card details on your website, and submit them to PayCloud through an API. This eliminates the need to redirect to the PayCloud payment page, achieving a more consistent and efficient user experience.

Before you Begin

But at the same time, there are also higher requirements for the technical development capabilities of merchants. Merchants need to be able to securely process card information and may even need to obtain "PCI DSS" certification.

How it works?

To use a merchant hosted checkout, the merchant needs to develop their own checkout page, request our card payment API, submit card information to PayCloud, and present the payment results returned by PayCloud to the customer. The following flowchart illustrates the merchant hosted checkout workflow:

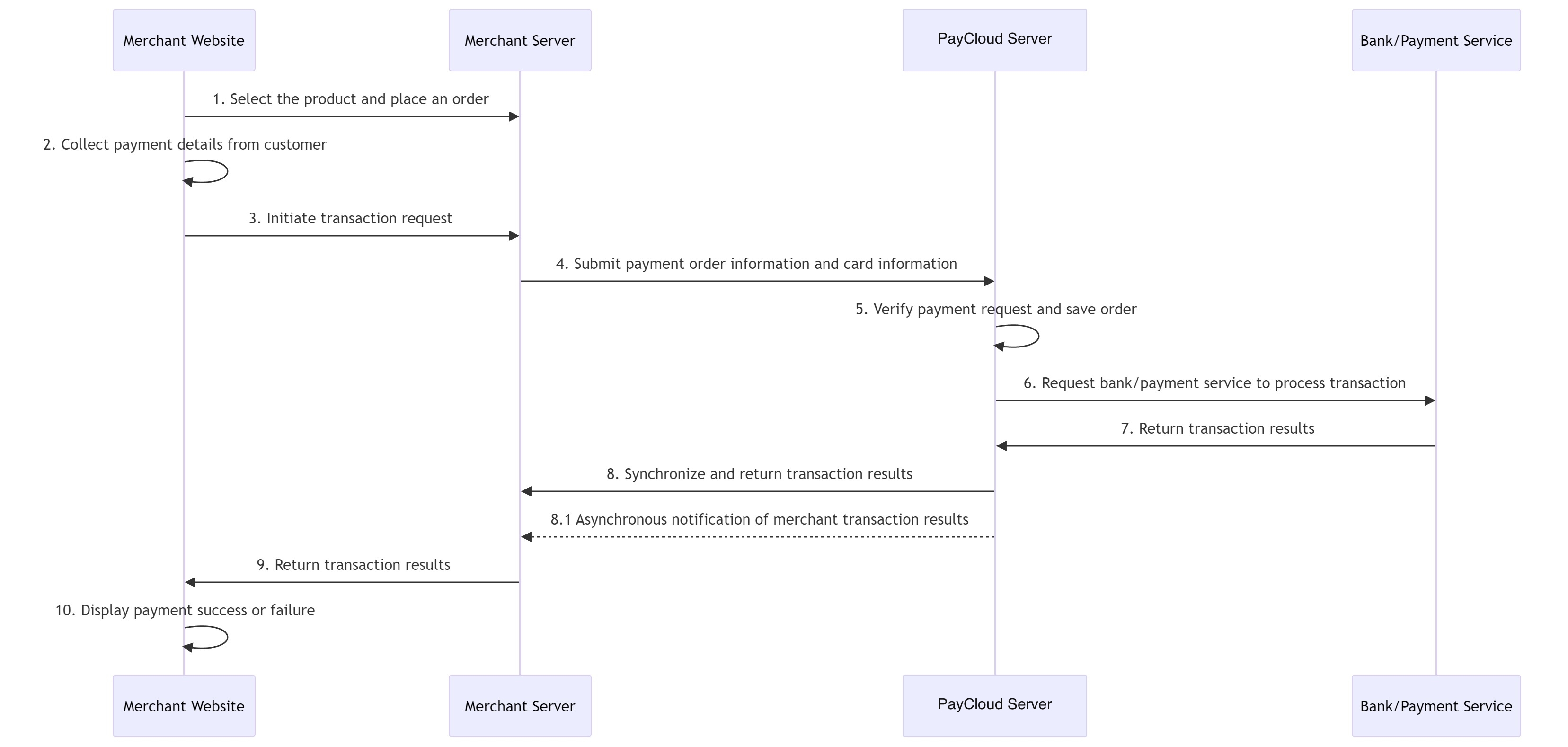

Flow

1. Customers select products or services on the merchant website, create an order.
2. Merchants provide a form to collect customer bank card information, in which users enter card details, such as card numbers, CVV， expiry date, etc.
3. Click the payment button to send a payment request to the merchant backend.
4. The merchant server requests the Merchant hosted checkout API of the PayCloud PayCloud server to create an order and submit the order information to PayCloud.
5. PayCloud PayCloud verifies order information and saves the order.
6. PayCloud PayCloud verifies payment information and forwards payment requests to banks/acquirer/third-party payment service providers.
7. Process payment requests and synchronously return corresponding processing results.
8. PayCloud PayCloud synchronously returns payment results to the merchant backend. And asynchronously notify the merchant server of the payment result. For details, please refer to transaction result notification. The Webhook notification URL is passed to PayCloud by the merchant through the "notify_url" parameter when Create Order.
9. The merchant server returns transaction results to the merchant website page.
10. The merchant page confirms whether the order has been successfully paid. Display the corresponding payment result interface to the user and provide subsequent products or services. To prevent missing orders, you can use the Query payment orders API Proactively check the order status.

Start integration

To integrate with the merchant-hosted checkout, you need to send an HTTP request and check the response. The merchant sends a card payment request to PayCloud. If 3DS authentication is not required, an approval or rejection will be returned directly; otherwise, a 3DS authentication page will be returned. The merchant will redirect the user to that page to complete the 3DS authentication. You can refer to the API documentation and example messages for more details.

Before you begin:

PayCloud suggests that you use sandbox parameters for integration before starting, so that you can quickly understand and experience the functions provided by PayCloud before activate a payment (activate a payment requires you to submit merchant information, review, and other actions, which may be a long process).
The payment after integrating sandbox parameters is not a real payment, but a simulation of the transaction process, which facilitates you to conduct large-scale testing, special amount testing, and simulate errors.
For detailed information, please read the content of the document: 2. Test integration

API list

We provide a set of REST APIs, please refer to the table below. These APIs provide SDKs for several languages, please visit SDK. API access rules, please refer to API rules.

API Name	Description
Merchant-Hosted Checkout Ordering	Submit payment orders through this API
Submit a refund request	If you submit a refund request through this api and the refund does not arrive immediately, you can call the refund inquiry API to get the progress of the refund.
Query order	Query the transaction result (consumption/pre-authorization/pre-authorization completion) of a positive transaction order through this API
Query refund	Query the transaction results of negative transaction orders (consumption cancellation/pre-authorization cancellation/consumption refund/pre-authorization completion refund) through this API
Transaction result notification	After the transaction, notify the merchant through this webhook to tell the merchant the result of the transaction

Quick Integration SDK

To simplify the integration process, we also provide SDKs or demos for several languages (see SDK/Demo section). These SDKs handle most of the necessary functionality, making the implementation of merchant-hosted checkout payment processes easier.
